Product Details

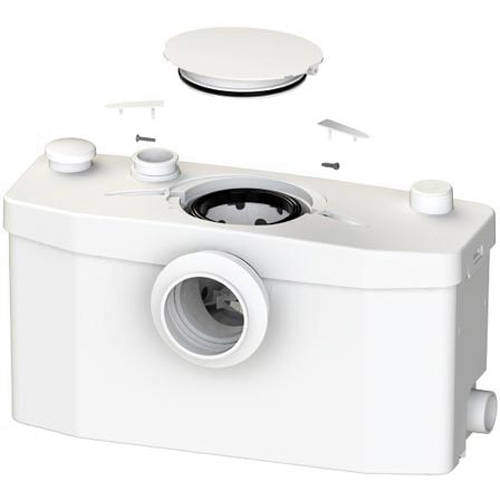

Saniplus Up macerator enables you to install an additional bathroom with ease. With two inlets and a greater tank capacity, the Saniplus Up can easily deal with a WC, wash basin, bidet and even the highest output power showers.
- Suitable for pumping effluent from a toilet, sink, bathtub and power shower.
- The easy way to add a bathroom in a basement, loft extension or in any home improvement where conventional large bore pipework is impractical.
- Only the highest quality, non-corroding materials and components are used.
- Rigorously performance tested.
- Suitable for new and replacement bathrooms.
- Two side inlets and a greater tank capacity.
- Easy service and access to the tank.
- Quiet technology.
- Improved design of casing.
- Pumps up to 15 feet below the sewer line, or even up to 150 feet away from a soil stack.
- Pumps up to a maximum height of 5 meters or a maximum horizontal distance of 100 meters.
- Discharge pipework sizes: 22mm - 28mm - 32mm.
- Flow rates: 90 litres/min.
- Motor power: 400 Watts.
- Voltage: 220-240 V/50 Hz.
- Working waste water temperature: 35°C.
- Inlet pipework: 40mm.

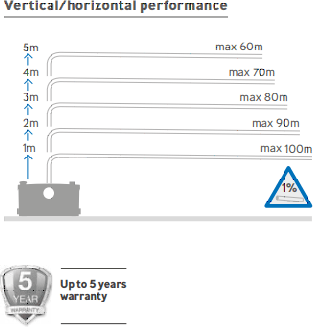

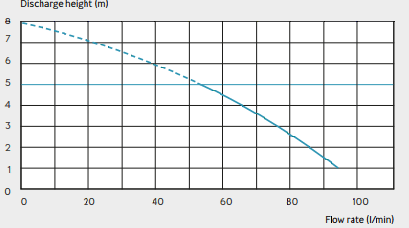

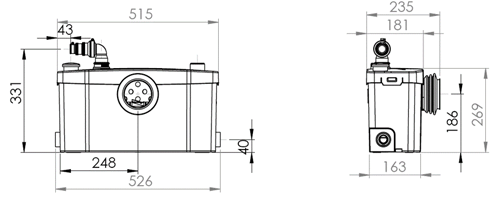

- NOTE: See technical drawing for vertical and horizontal performance.
- Depth required behind the WC: 210mm.
- IP44 rated.
- Complies with ISO 9001 and ISO 14001.
- Product Ref: 6003.
- Up to 5 year warranty: Saniflo give a 5 year guarantee on this macerator (backed by a nationwide service network of skilled and experienced engineers).
Product Code: SF-SANIPLUS-UP
Saniflo macerator pumping systems enable you to add facilities almost anywhere. They're easy, quick and economic to install and you can add a cloakroom or complete bathroom - even a kitchen or utility room!
Saniflo macerator come with a 2 year manufacturers guarantee for domestic use.
For a product brochure, and technical details of these products visit www.saniflo.co.uk
