Saniflo Saniplus, the top of the range product enabling the addition of a complete bathroom - WC, shower installation, bidet and washbasin - has also been re-cased with sound reduction, and an integrated carbon filter. A powerful motor enables Saniplus to pump the waste and water from a complete bathroom up to 5m vertically, 100m horizontally or a lesser combination of both.

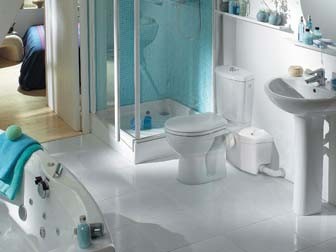

Add a complete bathroom as an en-suite, in a basement conversion or loft extension or in any home improvement where conventional large bore pipework is impractical.
Motor: induction motor (no carbon brushes or gears to wear out). Tested over 30,000 cycles.
Watts (consumption): 400w
Electrical supply: 220-240V 50Hz
Flow rate at max head l/min: 40
Discharge (vertical height is measured from floor level) horizontally to 100 metres or vertically to 5 metres
Gravity fall on ‘horizontal’ installations: 1:100
Discharge Pipe Diameter: 22mm
Construction Materials: Polypropylene, C.R.P., stainless steel, Neoprene
Type of WC Pan: (not included)
Short spigot 100mm HO outlet (BS EN 33/37)
Motor RPM: 2800 RPM
Normal Running Time WC:
10 - 20 secs approx or as required, to discharge bath, shower etc

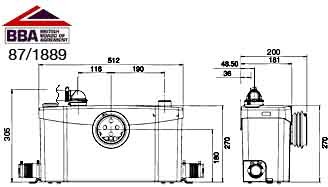

Dimensions:
512W x 305 O/H x 200D (requires 210mm behind spigot)
Note: Designed to fit BS EN 33/37 WC pans. As close coupled cistern dimensions vary, it may be necessary, with certain designs, to utilise a spacer between cistern and wall
Sanitaryware not included.
Product Code: SF-SANIPLUS
Saniflo macerator pumping systems enable you to add facilities almost anywhere. They're easy, quick and economic to install and you can add a cloakroom or complete bathroom - even a kitchen or utility room!
Saniflo macerator come with a 2 year manufacturers guarantee for domestic use.
For a product brochure, and technical details of these products visit www.saniflo.co.uk
